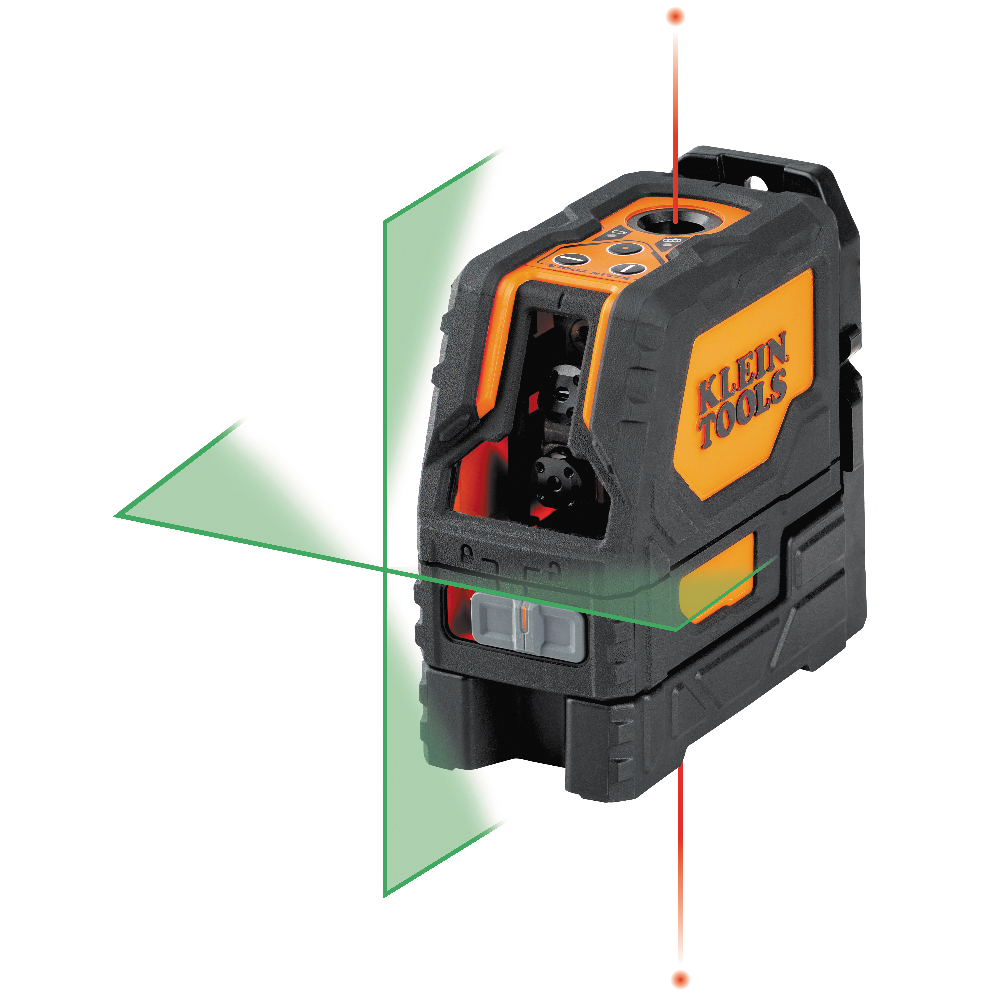

Rechargeable Self-Leveling Green Cross-Line Laser Level with Red Plumb
93LCLGR
- Rechargeable self-leveling laser level is easy-to-read with high-visibility green horizontal and vertical laser lines and red plumb spot lasers with a 165-Foot (50.3 m) working range
- Projects high precision horizontal and vertical lines and plumb up/down spots independently or together to address various alignment tasks with accuracy up to 3/32-Inch at 33 feet (10.1 m)
- High capacity rechargeable Li-ion battery powers all lasers with more than 15 hours of run time
- Integrated magnetic 360-Degree mounting bracket with 1/4-Inch and 5/8-Inch tripod mounting threads facilitates attachment to ferromagnetic objects
- Additional mounting clamp attachment for use on ceiling grid applications
- Rugged body provides IP54 water and dust resistance for job site durability
- Includes protective hard plastic carrying case, USB-A to USB-C charging cable, mounting clamp, and instruction manual
- This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power <=1mW @ 510-530 nm)
The ÀÇÓÑÉçÇø Green Rechargeable Laser Level is a high-performance laser leveling and alignment tool for professionals with a rechargeable battery. This level provides a reliable pendulum self-leveling system with clear, bright green laser level lines, and red plumb up/down spots. Equipped with an integrated magnetic mount and an additional ceiling grid clamp , Klein’s cross-line laser level enables a multitude of alignment and layout applications.
Specifications
Type:
Self-Leveling Laser Level
Application:
Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines, and/or Plumb Spots
Special Features:
Integrated Magnetic 360° Mounting Bracket with 1/4'' and 5/8'' Tripod Mounting Threads; Mounting Clamp Attachment; Excessive Tilt Indicator
Material:
ABS Housing and Electronic Components
Batteries:
Lithium-Ion
Laser Wavelength:
515-530 nm (Cross-Lines), 630-680 nm (Plum Spots)
Laser Safety:
≤1mW Each Beam, Class 2 Laser Product
Number of Beams:
Four; Horizontal, Vertical, Plumb Up, Plumb Down
Laser Color:
Cross Line: Green; Plumb: Red
Plumb Laser:
Yes
Indoor Range:
165' (50.3 m)
Maximum Distance:
165' (50.3 m)
Accuracy:
±3/32'' per 33' (±2 mm per 10 m) Vertical & Horizontal Beams, ±1/8'' per 33' (±3 mm per 10 m) Plumb Up Spot, ±5/32'' per 33' (±4 mm per 10 m) Plumb Down Spot
Pulse Mode:
No
Receiver:
No
Magnet Type:
Permanent Rare Earth
Drop Protection:
3.3' (1 m)
Ingress Protection:
IP54: Water and Dust Resistant
Transit Locking Mechanism:
Yes
Low Battery Alarm:
Yes
Low Battery Indicator:
Yes
Out-of-Level Indicator:
No
Standard:
EN61326-1, EN60825-1, 21 CFR 1040.10 and 1040.11
Mounting Type:
Magnetic, Tripod, Hang-Hole
Bag or Case:
Hard Carrying Case
Included:
Laser Level; Hard Carrying Case; Instruction Manual; Mounting Clamp; Charging Cable
Overall Length:
5.2'' (13.2 cm)
Overall Height:
5.3'' (13.5 cm)
Overall Width:
2.6'' (6.6 cm)
Weight:
29.6 oz (839 g)
Battery Life:
More Than 12 Hr
UPC:
092644930089
