Cable Installation Kit for Pass-Thruâ„¢

VDV026-813

  • Cable Tester Kit includes the components needed to terminate data cables using time saving Pass-Thruâ„¢ technology
  • Klein exclusive Pass-Thruâ„¢ Connectors provide fast, reliable connector installations for data applications
  • Certified for PoE+
  • CAT5e/CAT6 cables easily pass through connector to visually ensure that wires are in the correct order for consistent and secure terminations
  • 8 position, 8 contact Pass-Thruâ„¢ style data plug for solid or stranded cable
  • Fast, simple RJ45 Pass-Thruâ„¢ Crimper (Cat. No. VDV226-005) crimps and trims ÀÇÓÑÉçÇø RJ45 Pass-Thruâ„¢ connectors onto data cables (round STP / UTP cables)
  • Wiring guide on crimper helps minimize wiring errors
  • Cable tester (Cat. No. VDV526-100) with single button testing of terminated voice and data cables
  • Test CAT3, CAT5e and CAT6/6A cables
  • Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)
  • Compact tester easily fits in your pocket
  • Includes tester, crimper, Pass-Thruâ„¢ connectors and USA-made zippered pouch for storage
Videos
Downloads
Images
High-Res JPG
PNG

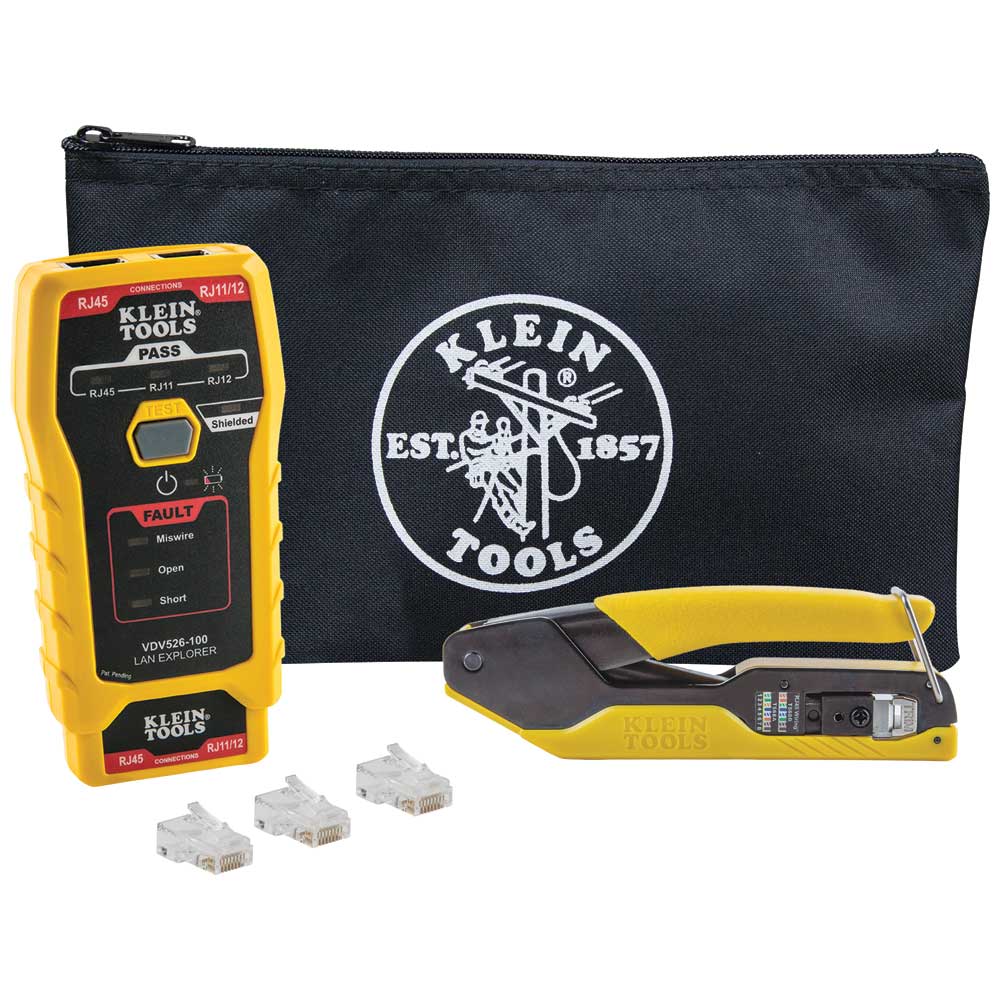

This Pass-Thruâ„¢ Cable Installation Kit includes the tools needed to connect and test ÀÇÓÑÉçÇø' RJ45 Pass-Thruâ„¢ connectors onto category cables. Test CAT3, CAT5e and CAT6/6A cables with the LAN Explorer® Data Cable tester. The kit includes the tester, a Pass-Thruâ„¢ crimper, a pack of 50 CAT5e/CAT6 Pass-Thruâ„¢ connectors and a zippered storage pouch.

Specifications
Type:
Cable Installation Kit
Application:
Pass-Thruâ„¢ Installation
Special Features:
Exclusive Pass-Thruâ„¢ Connectors
Overall Length:
5'' (13 cm)
Overall Height:
15.2'' (39 cm)
Overall Width:
4'' (10.2 cm)
Material:
High Carbon Steel, Polycarbonate Plastics, Stamped Steel, Vinyl
Batteries:
1 x 9V
Battery Life:
Active: 80 hr; Standby: 3.5 yr.
Drop Protection:
2' (0.6 m)
Supported Remotes:
Single, Stored on Tester
Connection & Adapter Types:
RJ45, RJ11/12
Display:
LED
Multiple Style Tone Generator:
No
Cable Type:
CAT3, CAT5e, CAT6/6A
Cable Identification:
No
Test & Measure Types:
Pin to Pin Wiremap; Shield
Included:
Tester, Crimper, Connectors, Pouch
Weight:
1.5 lb (0.68 kg)
UPC:
092644583902
Additional Information
Feature Icon klein/wp_ce.jpg
Feature Icon klein/wf_vdv-rj45.jpg
Warnings
  • Do NOT use on energized circuits or cabling systems.
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use
