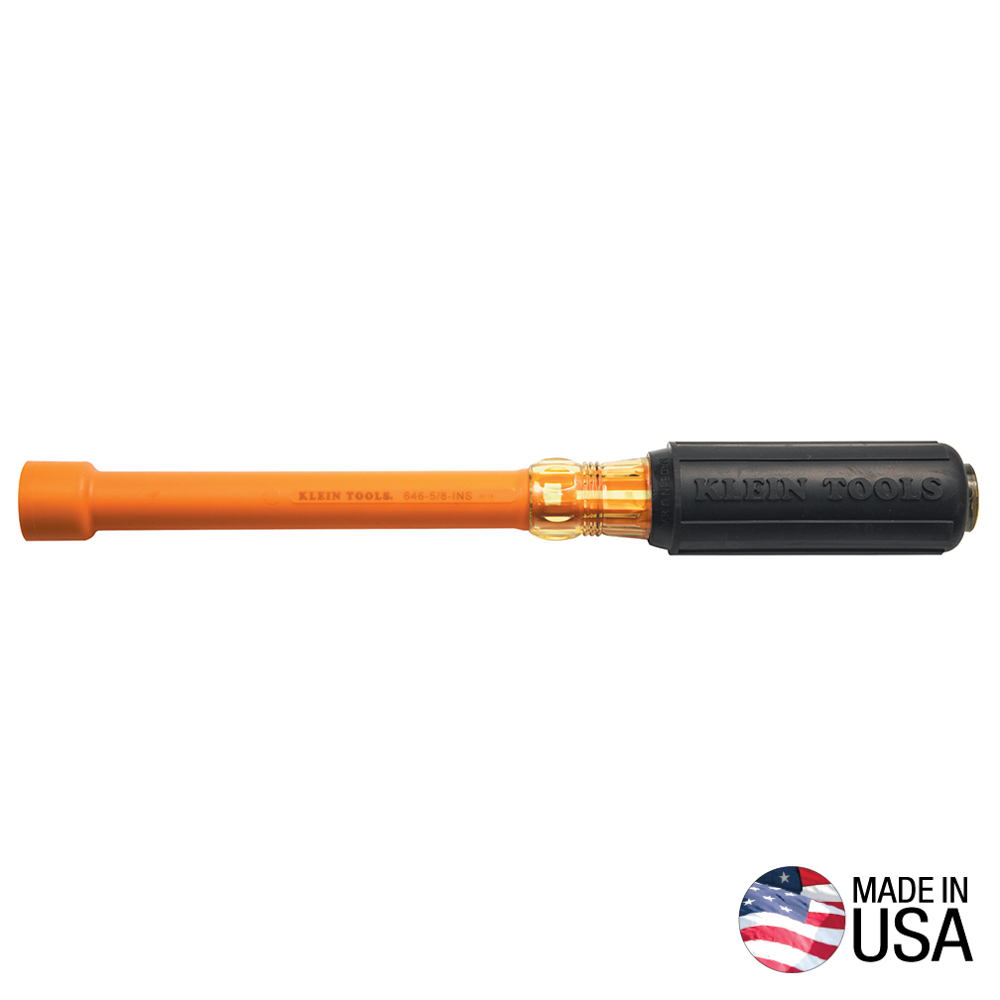

5/8-Inch Insulated Nut Driver, 6-Inch Hollow Shaft

646-5/8-INS

  • Individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
  • Two layers of insulation provide protection against electric shock
  • Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool with a flame retardant, impact-resistant, bright orange outer coating
  • Hollow shafts for work on stacked circuit boards or other long bolt applications
  • Made in USA
  • Tip-Ident quickly identifies nut driver size
  • Cushion-Gripâ„¢ handles for greater torque and comfort
1000volt Product Icon
Videos
Downloads
Images
High-Res JPG
PNG
Interactive Catalog

Protect yourself when working near an energized source with Klein's insulated hollow-shaft nut driver. Clearly marked with the official 1000-Volt rating symbol, Klein insulated tools exceed IEC 60900 and ASTM F1505 standards for insulated tools. Two layers of insulation provide protection against electric shock. The full hollow-shaft permits turning nuts on long screws.

Specifications
Application:
Stacked Circuit Boards, Long Bolt Applications
Special Features:
Tip-Ident Quickly Identifies Nut Driver Size
Measurement Standard:
SAE
Nut Driver Sizes:
5/8''
Magnetic:
No
Shaft Length:
6'' (15.2 cm)
Material:
Steel
Insulated:
Yes
Handle Material:
High-Dielectric Plastic
Color Code:
Yellow
Overall Length:
11.375'' (28.9 cm)
Standard:
IEC 60900 and ASTM F1505
Type:
Hollow
Weight:
6.4 oz (181 g)
UPC:
092644652332
Additional Information
Feature Icon klein/wf_tip-nut-driver.jpg
Warnings
  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection. Always inspect your tools before use. Do not use if orange coating cracks, breaks or becomes damaged. Destroy tool if white layer shows through orange layer.
  • Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
